ANSI Z21.88-2017/CSA 2.33-2017: Vented Gas Fireplace Heaters

ANSI Z21.88-2017/CSA 2.33-2017 Gas Fireplace

ANSI Z21.88-2017/CSA 2.33-2017: Vented gas fireplace heaters is the standard for gas fireplaces. For the purposes of this document, a “vented gas fireplace heater” is a vented appliance that simulates a solid-fuel fireplace and furnishes radiant heat and warm air to the space in which it is installed. It may or may not utilize duct connections.

Fireplaces are features in more than 37 million American homes, and almost 1 million new fireplaces are installed in U.S. residences each year. Gas fireplaces are often a desired choice for new fireplaces. This is because they maintain indoor air quality, keep the home clean, and contribute to less outdoor pollution that the conventional wood-burning alternative.

The ANSI Z21.88-2017/CSA 2.33-2017 standard applies to newly produced vented gas fireplace heaters with input ratings up to and including 400,000 Btu/hr (117,228 W) for use with natural gas or propane.

Furthermore, ANSI Z21.88-2017/CSA 2.33-2017 applies to direct vent appliances for manufactured home (this is in the US only) or mobile home original equipment manufacturer (OEM) installation convertible for use with natural gas and propane or for natural gas and propane alone. It also can be used for direct vent appliances for recreational vehicle installation for use with propane only or convertible for use with propane or natural gas.

The ANSI Z21.88-2017/CSA 2.33-2017 document details the construction, performance, and production and manufacturing tests for vented gas fireplace heaters. It also includes clauses for particular vent types, as well as items specific to the United States and those specific to Canada.

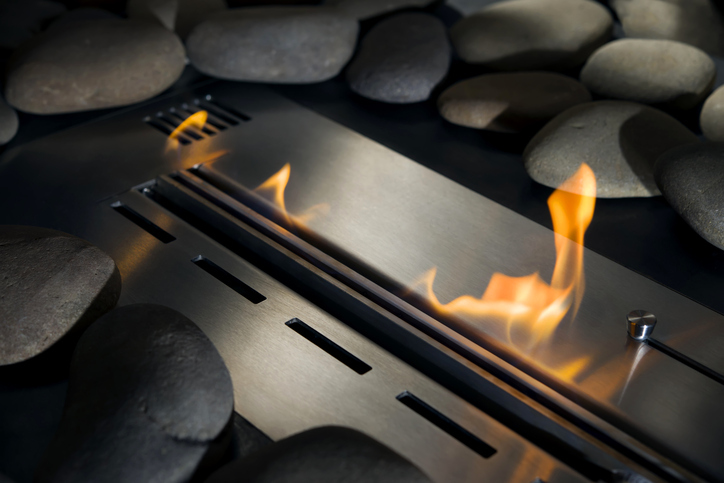

ANSI Z21.88-2017/CSA 2.33-2017 Gas Fireplace
Gas Fireplace

The user base of ANSI Z21.88-2017/CSA 2.33-2017 is expansive. As with other gas-fired equipment safety standards, this American National Standard was originally drafted back when significant attention was given to harmonizing American and Canadian standards for the industry. This trend continues, and the Z21/CSA Joint Technical Subcommittee on Standards for Vented Gas-Fired Warm Air Heaters develops the document.

All changes made to the ANSI Z21.88-2017/CSA 2.33-2017 revision are marked by a delta (∆) symbol in the margin. Major alterations include:

  • New guideline for appliance instructions to bear the symbol of the organization conducting tests for compliance with ANSI Z21.88-2017/CSA 2.33-2017.
  • Clarification that when an appliance does not need a safety barrier, the outside glass viewing area should be tempered glass.
  • New Clauses 6 and 7 for the construction and performance of vented condensing gas fireplace heaters.
  • Clarification that room temperature, when specified, is to be determined by means of four 24 AWG (0.21 mm2) bead-type thermocouples.
  • New normative Annex J, “Corrosion resistance criteria and test method for condensing appliances.”
  • New Table 6, “Determination of Category.”
  • New Figures 4, “Piezo ring and details of typical construction,” 5, “Chart for determination of appliance Category,” J.1, “Corrosion test setup for Category II appliances,” J.2, “Corrosion test setup for Category IV appliances,” J.3, “Corrosion test setup for vent,” J.4, “Spiking gas flow rates for corrosion test,” J.5, Spiking gas and monitoring systems for corrosion test,” and J.6, “Wiring diagram to prevent short cycling of burner with ambient temperature excursions.”

ANSI Z21.88-2017/CSA 2.33-2017: Vented gas fireplace heaters is available on the ANSI Webstore.
